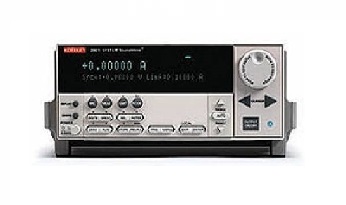

2601
관련링크
본문
-기본 사양
• TSP-Link allows connection of multiple 2600 series instruments in a master/slave config allowing unlimited scalability
• On-board Test Script Processor processes and runs complex sequences from the instrument - gives you up to
• On-board Test Script Processor processes and runs complex sequences from the instrument - gives you up to
10X greater throughput
- allows creation of custom measurement functions for components such as varistors, diodes and BJTs/FETs, or
- allows creation of custom measurement functions for components such as varistors, diodes and BJTs/FETs, or
algorithm based tests like I-V sweeps with power compliance, linearity and latch-up test sequences, and
thermal response tests.
• Store up to 50,000 lines of TSP code and more than 200,000 readings in 16MB of nonvolatile memory.
• Measure I and V at >10,000 readings/s. Execute a full source-measure cycle in just 200µs
• Ensure repeatable timing and high throughput with the high speed auto-ranging function.
• GPIB, RS-232 and 14-bit digital I/O interface ports are standard
• Current measure range (per channel) 1pA to 3A
• Current source range (per channel) 5pA to 3A
• Basic current programming accuracy 0.03%
• Basic current measurement accuracy 0.02%
• Voltage measure range (per channel) 1µV to 40V
• Voltage source range (per channel) 5µV to 40V
• Basic voltage programming accuracy 0.02%
• Basic voltage measurement accuracy 0.015%
• Readings to memory 10,000/s
• Sweep source change and reading to memory 5,500/s
• Sweep source change and reading to GPIB 3,600/s
• Spot readings to GPIB 1,100/s
• Spot source change and reading to GPIB 880/s
• Pulse capability 200µs minimum source/measure pulse
• Store up to 50,000 lines of TSP code and more than 200,000 readings in 16MB of nonvolatile memory.
• Measure I and V at >10,000 readings/s. Execute a full source-measure cycle in just 200µs
• Ensure repeatable timing and high throughput with the high speed auto-ranging function.
• GPIB, RS-232 and 14-bit digital I/O interface ports are standard
• Current measure range (per channel) 1pA to 3A
• Current source range (per channel) 5pA to 3A
• Basic current programming accuracy 0.03%
• Basic current measurement accuracy 0.02%
• Voltage measure range (per channel) 1µV to 40V
• Voltage source range (per channel) 5µV to 40V
• Basic voltage programming accuracy 0.02%
• Basic voltage measurement accuracy 0.015%
• Readings to memory 10,000/s
• Sweep source change and reading to memory 5,500/s
• Sweep source change and reading to GPIB 3,600/s
• Spot readings to GPIB 1,100/s
• Spot source change and reading to GPIB 880/s
• Pulse capability 200µs minimum source/measure pulse
