Overview

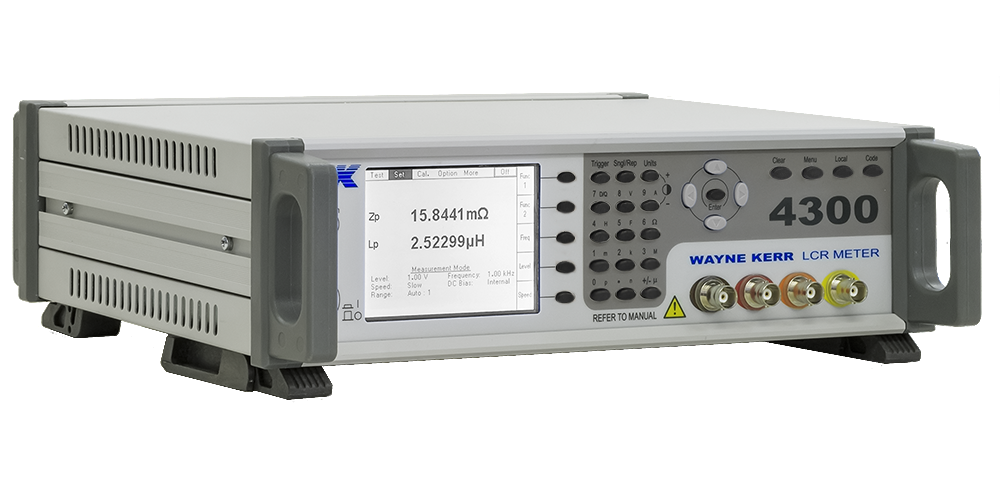

A range of easy to use LCR meters with comprehensive measurement functions.

Accurate and fast measurements may be made from 20Hz to 1MHz (43100) making the 4300 series the ideal choice for many applications in the test or production environments.

Two test mode enables consecutive measurements to be made with two different instrument parameters set. For example two AC measurements may be made at different frequencies or an AC and a Rdc measurement may be made.

Measurement limits may be set in Scale or Operator modes.

An optional component Binning module may be specified which provides an interface to component sorting machines. Limits set in the instrument Binning mode enable a wide range of components to be sorted while the choice of isolated or non-isolated modules give interface flexibility.

The optional Scaleizer handler module provides PASS/FAIL and data synchronisation relay outputs for limit checked measurements. Two output signal configurations are available.

Up to 20 measurements set ups can be saved with user defined names for later recall.

All 4300 series instruments may be externally controlled using the standard RS232, GPIB, USB or LAN interfaces.

Key Features

• Test components from 20Hz to 1 MHz (43100)
• 0.1% basic accuracy
• < 25ms measurement time
• Parameters C, L, Z, Y, X, B, Rac, Rdc, G, Q, D, Ø
• Single or two test operation
• Up to four parameters may be displayed (two test mode)
• Drive level from 10mV to 2Vrms
• Scale mode with measurement target limits
• Operator mode with target limits
• +2V internal or up to ±40Vdc external bias
• Measurement setup Save and Recall
• GPIB / IEEE-488, USB, LAN and RS-232 interfaces
• Handler Scaleizer module (Optional)
• Binning (Optional)
• Protection against charged capacitors
• Small size and light weight
