1J1015
1J1015
Overview

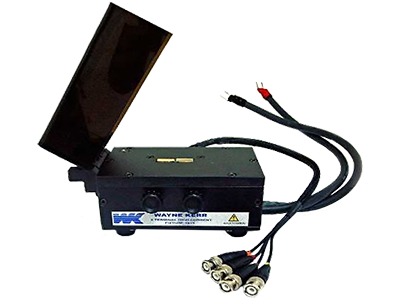

The 1J1015 Conventional Body 2-Terminal High Current Fixture is used to connect a Wayne Kerr Analyzer (3255B or 3260B) and DC Bias Unit (3265B) system to a conventional body Device Under Test and pass up to 125 A DC bias current.
Suitable models
The 1J1015 Fixture can be used with the following systems:
| Analyzer | DC Bias Unit | Maximum measurement frequency | Maximum DC bias current |
|---|---|---|---|
| 3255BL |
3265B |
200 kHz |
125 A using 5 units in parallel |
| 3255B | 500 kHz | ||
| 3255BQ | 1 MHz | ||
|
3260B |
3265B | 1 MHz | 125 A using 5 units in parallel |
| 3265BQ | 3 MHz | 50 A using 2 units in parallel |
Technical Specification
Frequency Range: 20 Hz to 3 MHz (dependent on analyzer model)
DUT Temperature: 200 ºC for 1 hour
Connections: The measurement leads are connected to the analyzer (3255B/3260B) front panel BNC’s
The high current leads are connected to the high current terminals of the 3265B DC Bias Unit
2-terminal connection to the leads of the Device Under Test
Safety: When the fixture cover is opened, the safety interlock will operate and stop the DC bias current.
Dimensions: 185 mm x 115 mm x 130 mm (L x W x H)
Weight: 1.75 kg
Compatibilities
- Wayne Kerr 3255 Series
- Wayne Kerr 3260 Series
- Wayne Kerr 3265 Series
