주요기능

• 2000W of pulsed DC power (±50A @ ±40V)
• 200W of continuous DC power

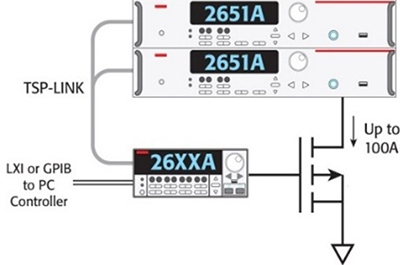

• Boost output to 100A or 80V by using Keithley’s TSP-Link® inter-unit communications/expansion bus
• 1 microsecond per point, continuous sampling 18-bit A/D converters
• 100 microsecond minimum pulse with 25 microsecond rise time
• High accuracy, 22-bit integrating A/D converters
• 1 picoamp, 1 microvolt resolution
• Pulse from 1% to 100% duty cycle
• Fully customizable pulse/sweep waveforms

• Fully isolated, independent channels enable true SMU-per-pin testing
• “Mainframeless scalability” with embedded TSP®/ TSP-Link® interface
• Multi-channel expansion with 500 nanosecond synchronization with built-in Trigger Controller
